European standard narrow base two wheels 48V 350W Pedal Assisted Electric Scooter Bike For Adults
Quick Details
1. Motor power: 48V 250W rear brushless motor
2. Lead Acid Gel battery: 48V 12Ah
3. Tire size: 16”X 2.5
4. Brake system: Drum brakes for both wheel
5. Pedals assisted system and Throttle: Yes
6. Max Speed: 25km/h European standard
Product Descriptions
HP-629 is one classic pedals assist electric scooter for many years, they are popular in Europe and North America. 48V 250W and 25km/h performace meet European standard; 48V500W ad 32km/h speed meet Canada law. The battery can be removable.
Another feature, the foot rest base is narrow, only 25cm width. So the driver use pedals assist system to drive this e-bike eaily and comfortable.
Components
- Drum brake system. This electric scooter installed drum brakes for front and rear wheel, to make good performance and balance cost.
- LED headlamps design, to make the scooter see longer and clearly. Also save electricity for whole scooter.
- Full suspension system.
Specifications
| Model number | HP-629 |
| Motor | 48V 250W three phase motor |
| Battery | 48V 12Ah lead acid gel battery, removable |
| Charge time | 4-8h |
| Charger | 48V 1.8A, plug can be customized |
| Controller | 48V 25A |
| Speed | 25Km/h |
| Speed mode | Single level |
| Driving distance | 40-45km by PAS |
| Weight | 65Kgs |
| Packing dimension | 1620x450x1000mm |
| Package | 90% completed, one piece per carton |
| Panel/speedometer | Normal display |
| Driving mode | Pedals assisted and Throttle |
| Alarm system | Remote alarm |
| Wheel | 16” |
| Tire | 16”x2.5, CST tire |
| Chain | stainless |
| Frame | Paint with electrophoretic coating |
| Fork | Hydraulic suspension |
| Shift lever | -- |
| Rear derailleur | -- |
| Front brake | Drum Brake |
| Rear brake | Drum Brake |
| Brake levers | Aluminum |
| Rims | Aluminum alloy |
| Spokes | -- |
| Pedals | Foldable |
| Chainwheel | 28T |
| Cranks | steel |
| Freewheel | 16T |
| Handlebar | Steel |
| Stem | -- |
| Grip | 136MM |
| Seat | Lengthen, comfortable |
| Seat tube | -- |
| Headlamp | LED |
| Fenders | Plastics |
| Wheel base | 1245mm |
| Min ground clearance | 120mm |
| Saddle ground clearance | 770mm |
| Handlebar ground clearance | 980mm |
| Licence requirement | 250W no need for EU; 500W no need for North America |

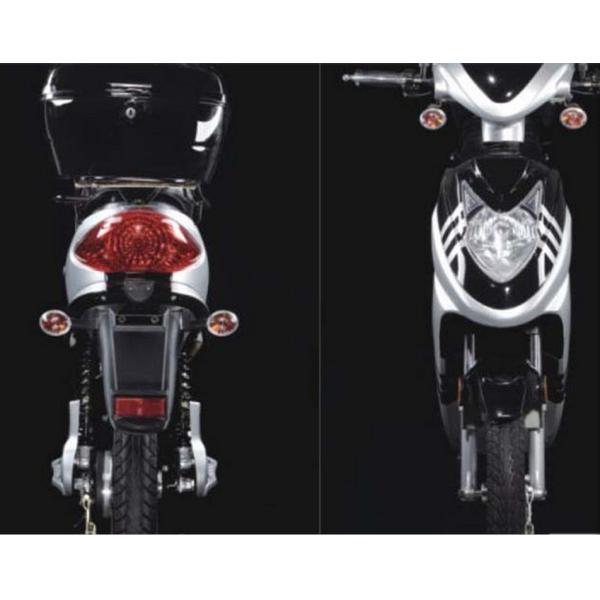

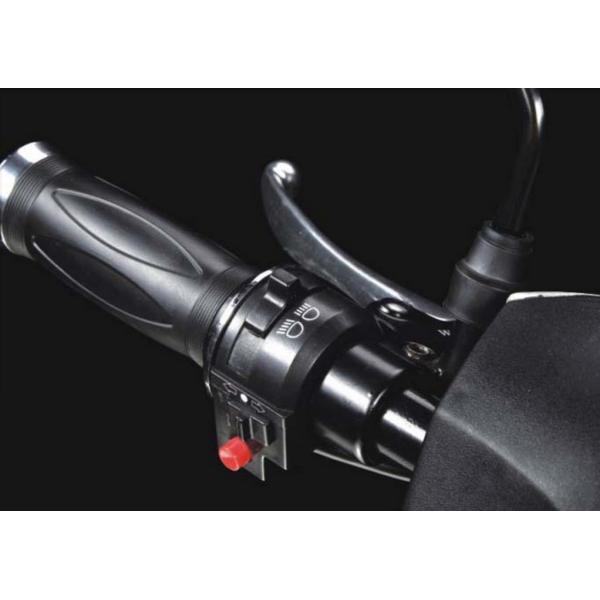

Pictures Show
